304 stainless steel pipe fitting Stainless steel elbow
Description
Stainless steel elbow generally does not have local corrosion, 304 stainless steel elbow can withstand chloride content of 200ppm, 316 stainless steel elbow can withstand chloride content of 1000ppm, this conclusion is based on exposure test data and has been confirmed by experience. The coefficient of thermal expansion of stainless steel elbow is similar to that of copper elbow, which is 1.5 times of that of ordinary steel pipe.
Technical data sheet
304 stainless steel pipe fitting Stainless steel elbow technical data sheet as below:
| DN | Outside diameter | 90 degree elbow |
| A series | B series | Long radius | Short radius |
| 15 | 213 | 18 | 38 | - |
| 20 | 26.9 | 25 | 38 | - |
| 25 | 33.7 | 32 | 38 | 25 |
| 32 | 42.4 | 38 | 48 | 32 |
| 40 | 483 | 45 | 57 | 38 |
| 50 | 603 | 57 | 76 | 51 |
| 65 | 76.1(73) | 76 | 95 | 64 |
| 80 | 88.9 | 89 | 114 | 76 |
| 100 | 1143 | 108 | 152 | 2 |
| 125 | 139.7 | 133 | 190 | 127 |
| 150 | 1683 | 159 | 229 | 152 |
Specification
Standard:GB / ANSI /JIS / DIN
Size:Customized Size
Usage:Oil Gas Water,connection for pipes
Characteristic
Stainless steel elbow, its thermal conductivity is 1 / 25 of copper pipe, is 1 / 4 of ordinary steel pipe, especially suitable for hot water transmission. The most commonly used stainless steels in water industry are 304 and 316 stainless steels, which can meet most water treatment and transportation conditions.
Stainless steel elbow. Its tensile strength is 2 times of carbon steel elbow and 8 ~ 10 times of plastic elbow. The strength of the material determines whether the water pipe is strong, impact resistant, safe and reliable. Safety and reliability is the most important requirement of building water supply. Under the impact of external force, the possibility of leakage of stainless steel elbow is very small. The working pressure of high-rise water supply system is generally greater than 0.6MPa, and the pipe pressure is required to be higher. Due to its excellent mechanical properties, the thin-walled stainless steel pipe can withstand very high water supply pressure, up to 10 MPa, which is especially suitable for high-rise building water supply.
Package
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.
Delivery time
Our Steel flat factory have high ability for production, the delivery time is 25 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
Product Tags:
|
|

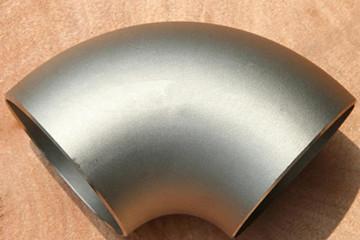

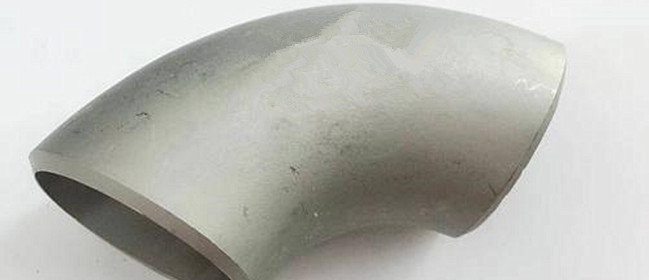

ANSI 90 Degree Elbow SS304 Stainless Steel Pipe Fittings Images
|
